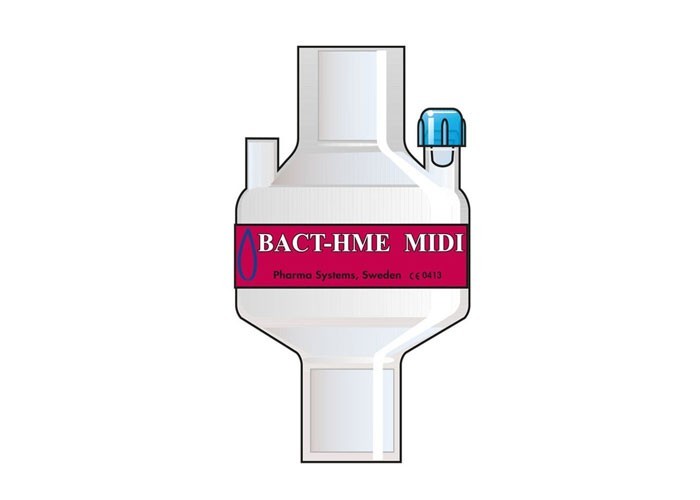

BACT HME Midi

Offers the user a high efficiency HMEF for breathing systems in a clear housing for easy inspection on secretions. Conical fittings in accordance with ISO standard ensure safe connection security.

Conical fittings in accordance with ISO standard ensure safe connection security.

  • >99.99% effective Bacterial/Viral Filter to prevent the spread of infectious particles into the circuits, machines and manual resuscitators.
  • Efficient humidification prevents moisture from collecting in the tubing.
  • Reduces potential colonization into the circuit and equipment.
  • Reduces the risk of cross-infection among patients and hospital staff.
  • Eliminates the need for water traps and their maintenance.
  • Dry and filtered gas percent sampling tube and analyzers from moisture and colonization.
  • Initial set-up is simple, quick and secure.
  • Different options ensure the right choice of device.

Should be changed every 24 hours or more frequently if resistance increases



Tidal Volume 100-1200
Dead Space 47
Weight 29
Resistance cm H2O (LPM) 30 LPM: 1.4
Moisture Return (mg H2O /l air) VT 500 ml: 32
Filtration Efficiency Bacterial >99.99
Filtration Efficiency Viral >99.99
