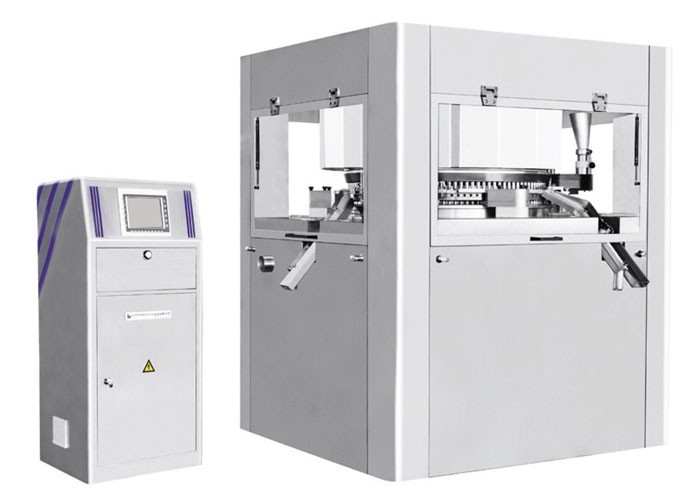

Automatic Triple Rotary High Speed Tablet Press Machine (GZPT 1060 Series)

Product model：GZPT-122/113/95/76

• Design of 3 segregated areas-Dring, servo control and compression, Feeding powder in three hoppers.
  Tablets compressed at three sides. Tablets ejected through three sides chute. Rapid speed with large quantity punches.
• Cancel hydraulic system. Compression rollers adopt mechanical support. To avoid secondary pollution; Due to the upper and lower Compression rollers adopt independent modules, the rollers adjustment separately, punches can not be clasped. The position of lower compression rollers is controlled by motor and fast adjustment.
• Electric control system is entirely separate from main machine. The operation area is separate from production area. This design can extend the service life of electric control system. Also greatly enhance the sanitation and safety factors
• All contact parts, such as feeding system, die table and tablet ejection components, etc, are made of stainless steel or non-toxic high polymer material which comply with GMP requirements.
• No handwheel control. Filling system is controlled by servo motor with swift respond. The main pressure and pre-pressure use synchronous motor Control. The location of main pressure and pre-pressure measured through the encoder. Accurate data and reduce manual errors
• Table weight can be controlled by automatic filling volume adjusting; single punch pressure is measured and monitored; automatic alarm for filling volume adjusting over limit and single punch pressure over limit; automatic rejection for over limit weight tablets.
